Ecoflow 50A AC/DC Panels are back in stock! Orders fulfilling 2nd week of December. 30A AC/DC Panels are in stock and typically ship in 5-7 business days after processing. Typical campervan and RV installations will not require 50A panels and the 30A panel will provide the end user with ideal experience and common uses.

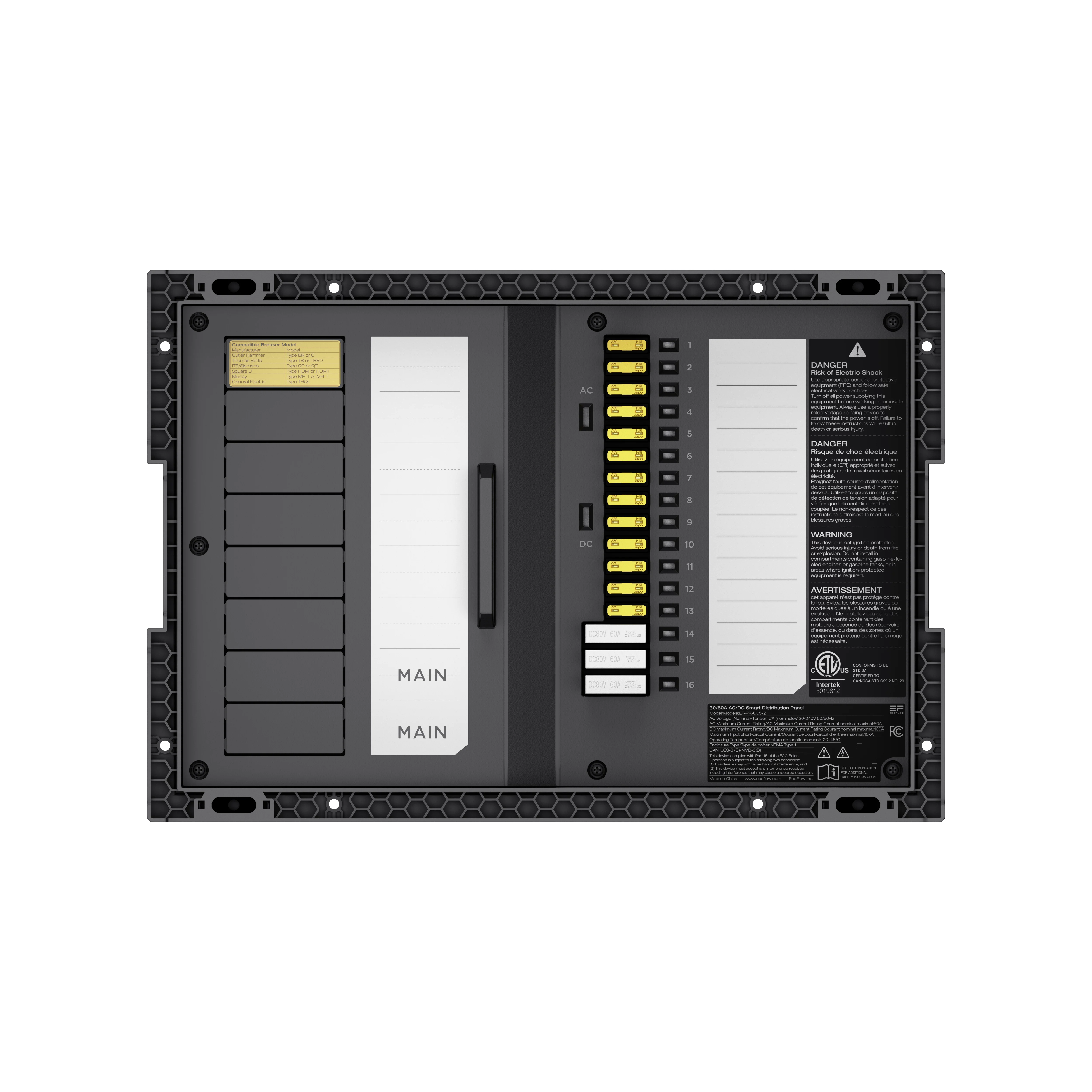

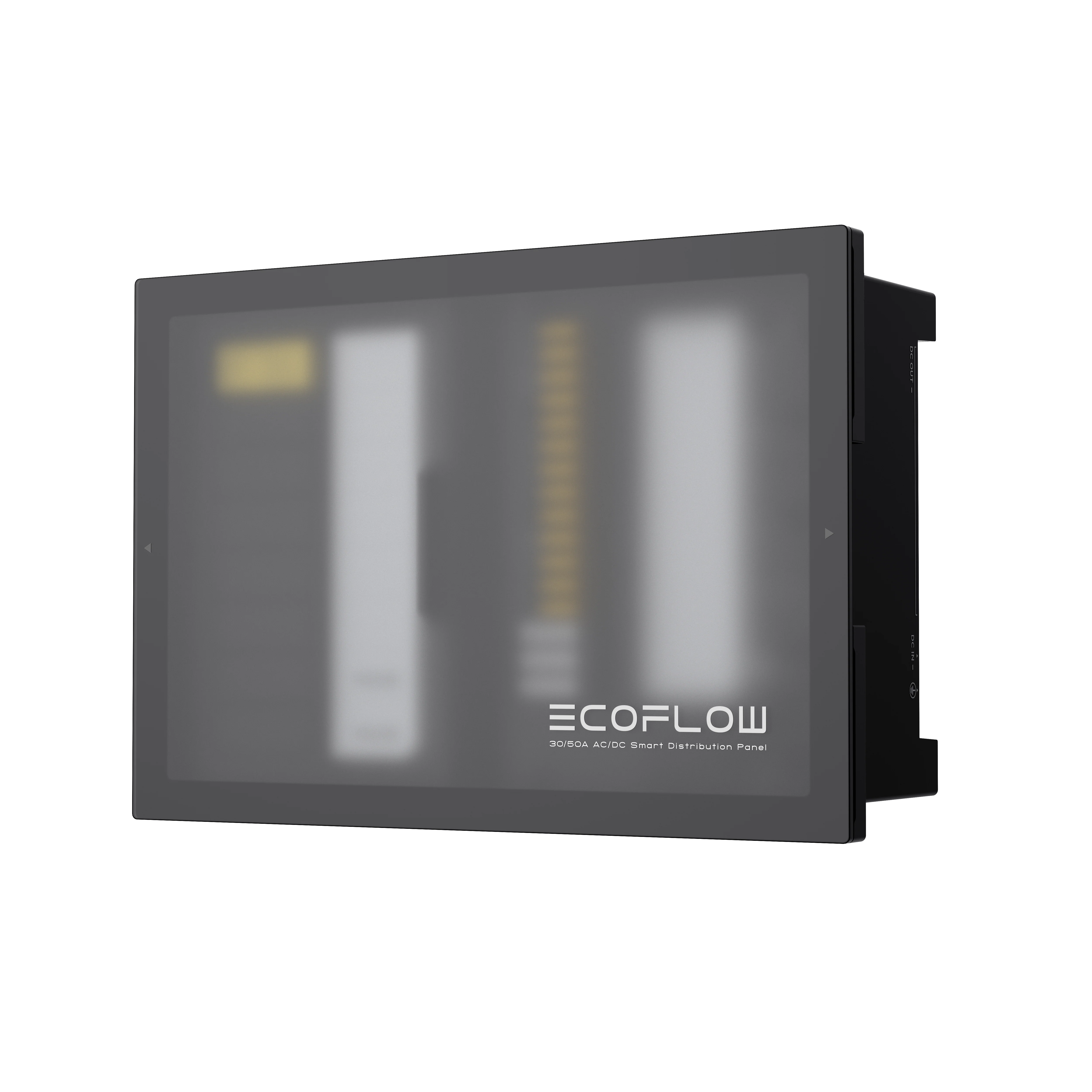

Introducing the EcoFlow 30A/50A Distribution Panel, a game-changing solution that brings convenience and versatility to your power distribution needs. This innovative panel is designed to streamline the management of AC and DC power, making it the perfect companion for both indoor and outdoor applications.

One of the standout features of the new EcoFlow 30A/50A Distribution Panel is its ability to accommodate both AC (alternating current) and DC (direct current) power sources and allow up to 240V output when connected to 50A shore power.

This distribution panel can be wired to support just single-phase 120VAC loads, or to support both single-phase 120VAC and split-phase 240VAC loads. It also supports either 12VDC or 24VDC output.

The 30A/50A Distribution Panel does not come with circuit breakers or extra DC fuses. Three DC 40A fuses are included. Please see the 30A/50A Distribution Panel User Manual for compatible AC circuit breakers.

FREE SHIPPING on this item anywhere in the lower 48 US states.

Key Features: EcoFlow 30A/50A Distribution Panel

Compatible with both EcoFlow 5 kVA (Gen 2) Power Hubs and 3.6 kW (Gen 1) Power Hubs
120V/240V output capabilities
12 AC branch circuits
16 controllable DC circuits
Split phase (L1, L2, N) options
AC input/output up to 50A
Safe power distribution
Easy installation
Made in China
5-year warranty.

Specifications: 30/50Amp AC/DC Smart Distribution Panel - Gen 2

Feed-In type	Split phase (L1, L2, N)
AC Input	50A Max. 120V/240V, 60Hz
AC Output	Max 30A for each branch circuit
AC Circuits	Max 12 branch circuits
Maximum Input Short-Circuit Current	10kA
DC Input	Max 100A, 13/26V
DC Output	Max 30A for F1-F13 Circuits Max 50A for F14-F16
Number of Circuits	16 controllable circuits(F1-F16)
Operating Temperature (C)	–25°C to 45°C (–13°F to 113°F)
Operating Temperature (F)	–25°C to 70°C (–13°F to 158°F)
Dimensions	390x135x270 mm (15.3x5.3x10.6 in.)
Net Weight (lbs)	4 kg (8.8 lb)
Altitude	9842 ft (3,000 m)
Enclosure Type	NEMA Type 1

Documents: EcoFlow 30A/50A Distribution Panel

EcoFlow 30A/50A Distribution Panel User Manual

Distribution Panels/Fuse Boxes

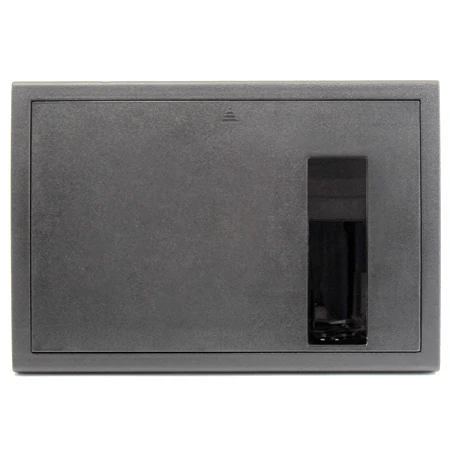

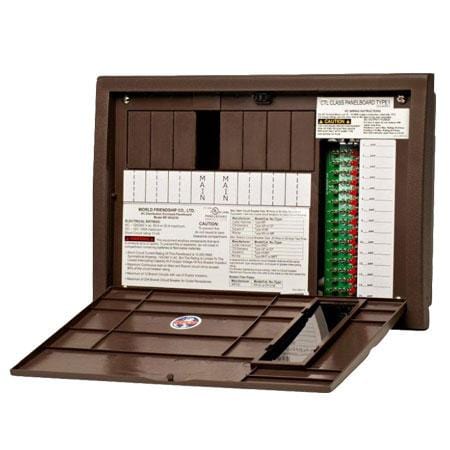

WFCO WF-8930 Distribution Panel

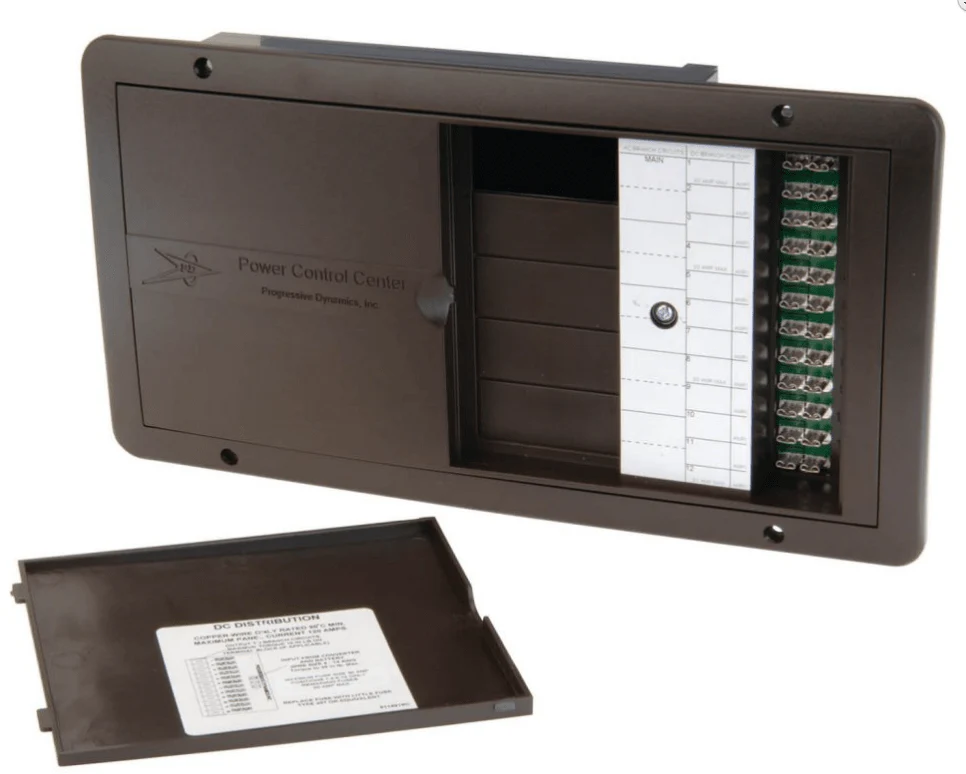

Progressive Dynamics PD5000 AC/DC RV Distribution Panel
