Van Compass 2023+ Mercedes Sprinter 144" AWD Rocker Guards

Part#
VCMP-4106

Need rocker guards for your Mercedes Sprinter AWD (2023+)? The Van Compass 2023+ Mercedes Sprinter 144" AWD Rocker Guards offers functional body protection, added chassis rigidity, and sleek style.

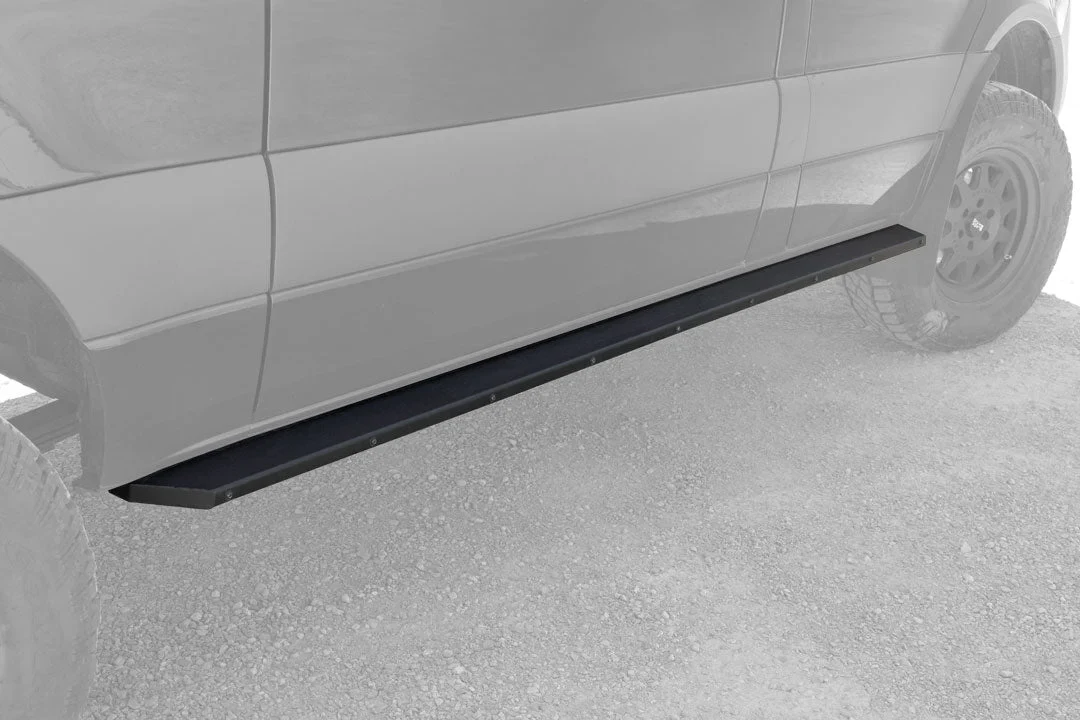

Featuring Van Compass’ signature stealth design, these Rocker Guards create a clean 4" wide step that makes getting in and out of your van easier, while protecting the rocker panels from trail hazards like rocks, branches, and debris. Integrated Hi-Lift jack slots provide safe and accessible lifting points, making off-road recoveries or flat tire changes faster and safer.

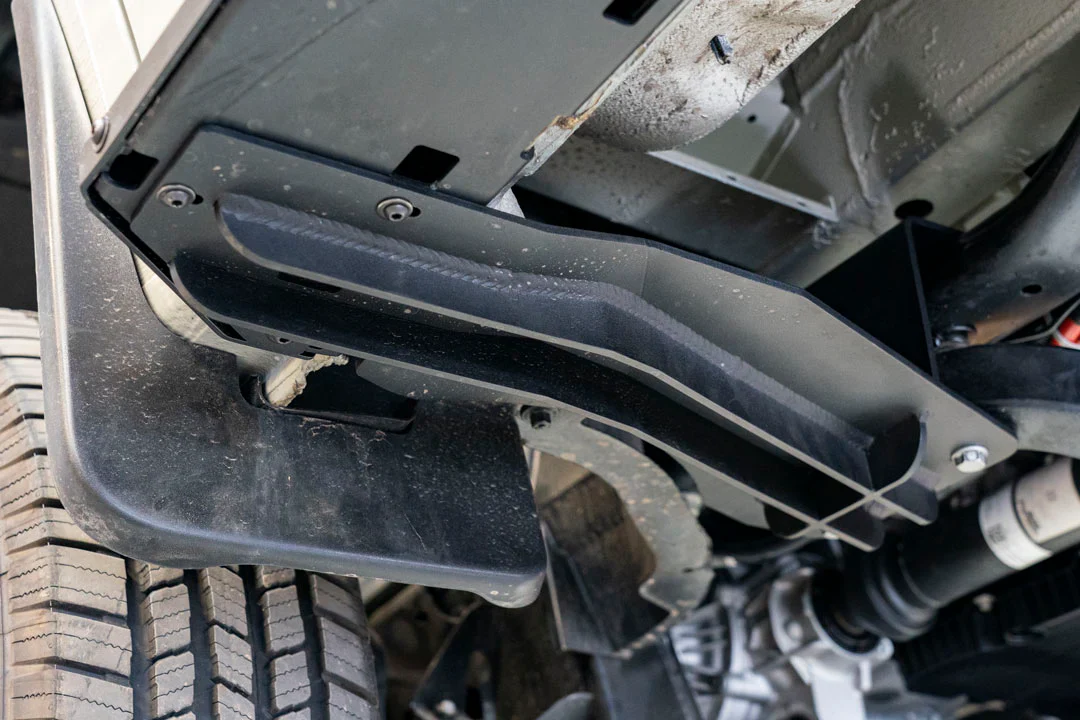

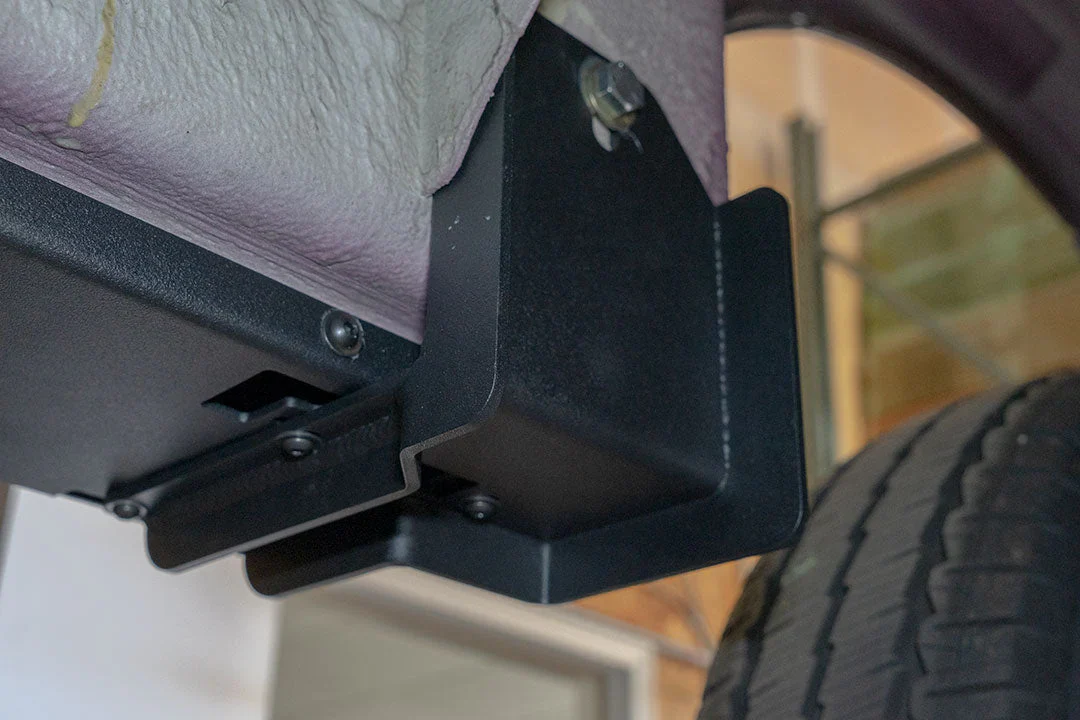

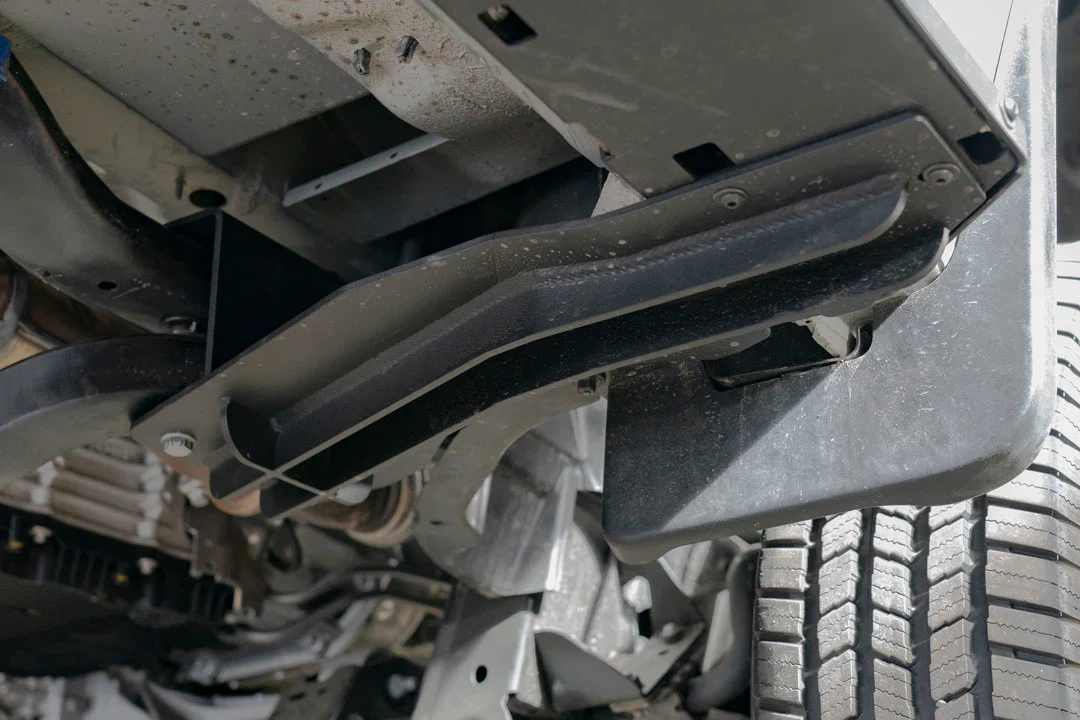

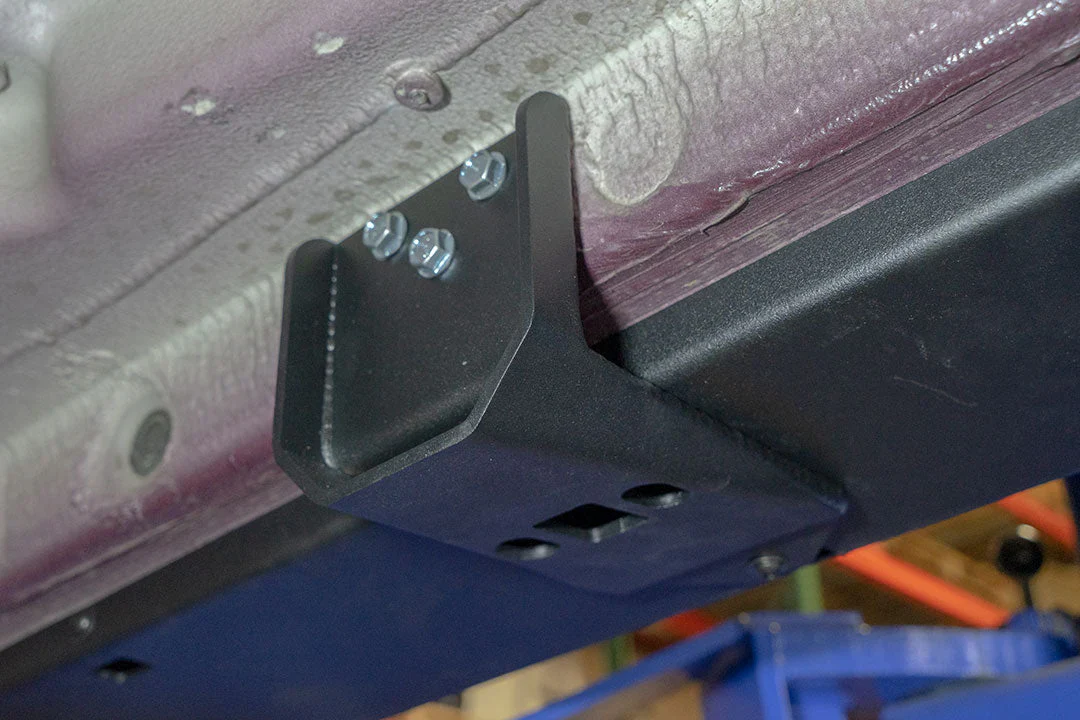

The main step surfaces are constructed from durable 1/8" thick steel and bolt to the vehicle’s pinch seam using stainless steel hardware for corrosion resistance. The heavy-duty 3/16" steel frame mounts secure to the chassis at three points, ensuring a rock-solid attachment that not only protects but also increases the torsional rigidity of the vehicle.

Key Features: Van Compass 2023+ Mercedes Sprinter 144" AWD Rocker Guards

• Designed for 2023+ Mercedes Sprinter AWD with 144" wheelbase
• Provides essential rocker panel protection and adds chassis rigidity
• 4" wide step surface improves convenience for entering and exiting the van

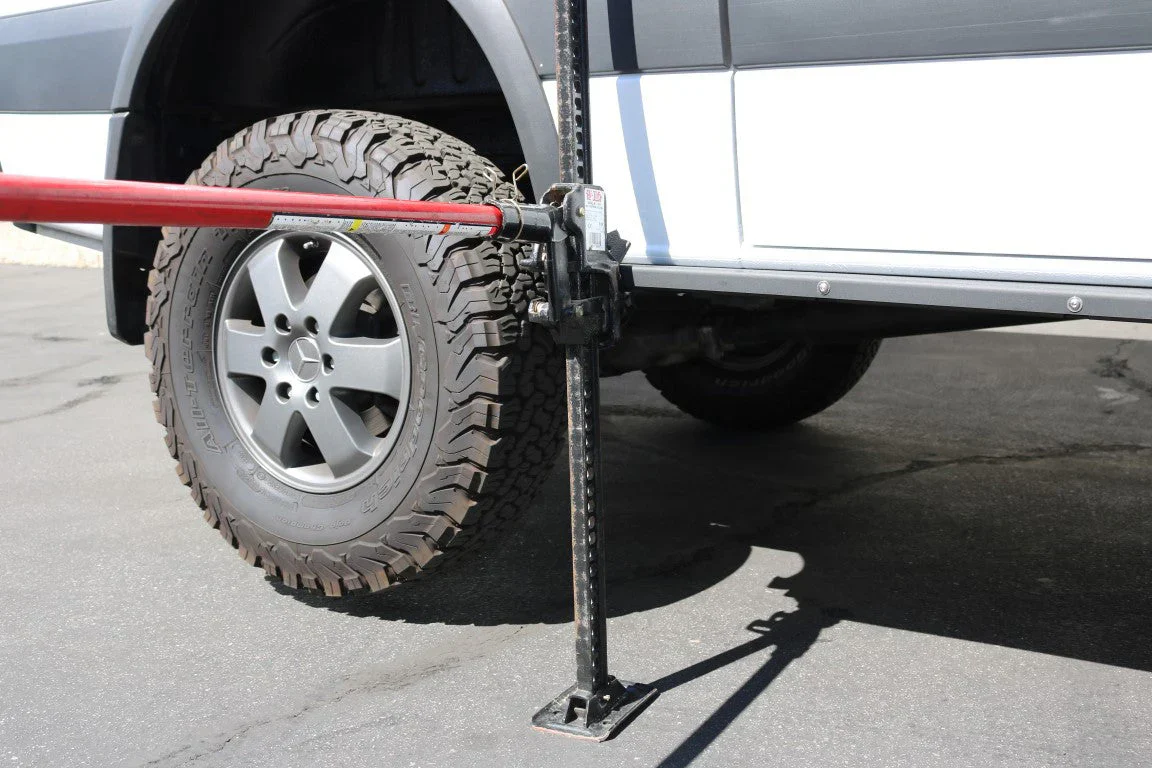

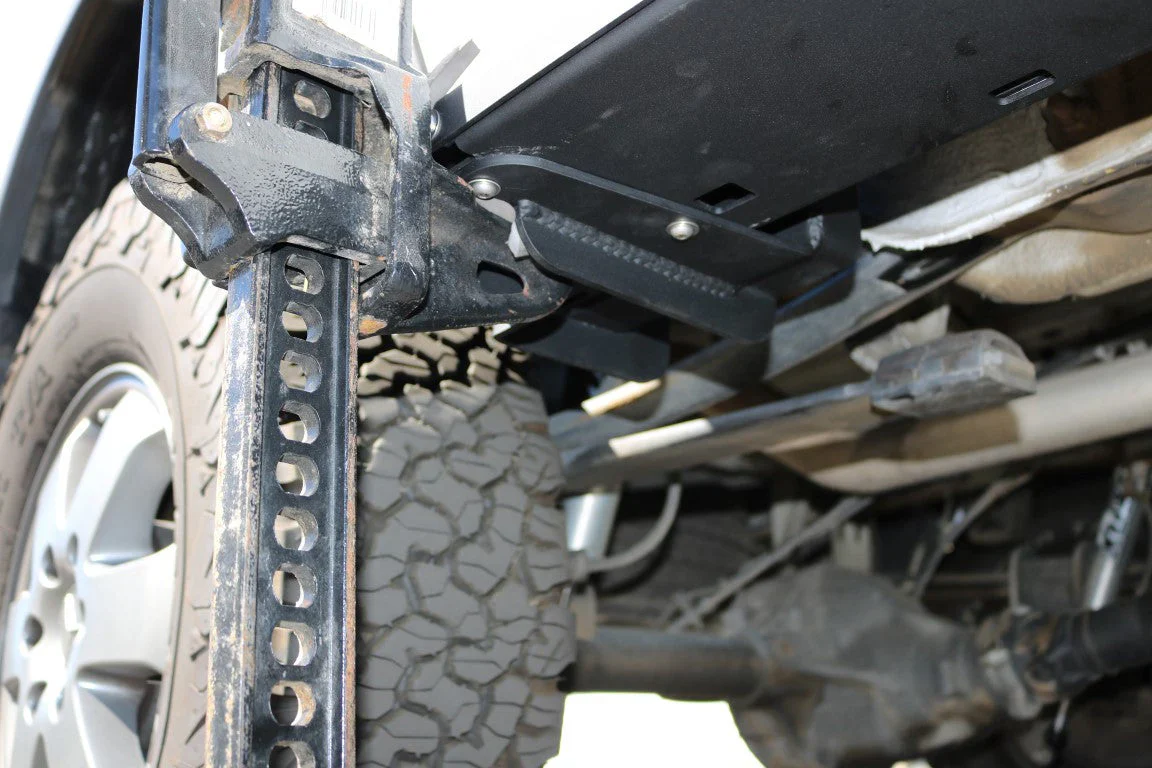

• Integrated Hi-Lift jack slots for safer off-road recovery and tire changes
• 1/8" thick steel step surface and 3/16" thick steel frame mounts for maximum durability
• Stainless steel hardware included for corrosion resistance
• Powder coated for long-lasting durability and a sleek look
• 100% bolt-on frame mounting with required drilling at the pinch seam
• Made in the USA

What's Included?

• 3/16" Steel - Front, Middle and Rear Frame Mounts - Matte Black Textured Powder Coat Finish
• 1/8" Steel - Steps - Matte Black Textured Powder Coat Finish
• Stainless Steel Mounting Hardware, coated with AL2000 black finish for a stealth look
• Front subframe tie in mounts are specific to lift height, please choose the correct lift height when ordering.


Fitment Guide

MODEL: SPRINTER 2500 and 3500

YEAR: 2023-PRESENT

DRIVE TYPE: AWD

NOTE: Not compatible with 2" Van Compass Striker lift.

NOTE: May be installed on a 2WD when equipped with a Striker lift kit. Select non-lifted AWD height sliders.

NOTE: Not compatible with Storyteller MODE or Winnebago Revel
